Hydromassage corner bathtub 140x140 cm AVIRA symmetrical with 8-colours LED and water cascade

Description of the whirlpool system, operating functions

• type of hydromassage system: EFEKTIV (mixed water-air) plus 3 massage programs (relaxation, fitness and tonic)
• modern touch electronic control panel for system functions
• hydromassage water pump from the renowned French company ASD, power 900 W (CE, TUV mark)
• efficient air blower from the renowned ASD company, power 700 W (CE, TUV mark)
• water hydromassage: 4 large side water jets with adjustable water stream direction, 4 small jets with adjustable back - 8 water jets in total
• air massage: 14 peripheral nozzles for air massage (10 at the bottom of the bathtub, 4 for the back)
• two different massage zones for the back (water zone and air zone)
• chromotherapy - 8 LEDs installed (possibility to set the selected color or sequential operation (smooth color change)

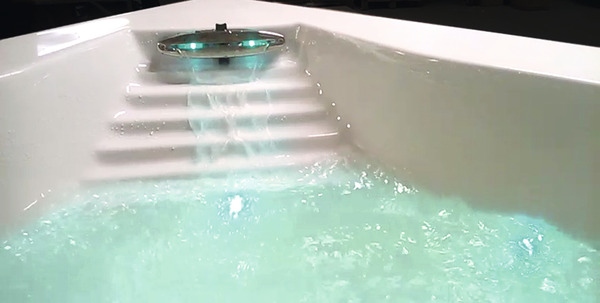

• cascade spout with LED illumination (connected to the internal circulation of the bathtub - no hydraulic power required)
• LED lighting in 8 colors
• automatic function of auto-drying of air piping after finished bath
• water level sensor (hydromassage system dry running lock)
• water pump return suction
• correct water level sensor
• programmed hydro-massage time (20 minutes)
• additional aeration of the water hydromassage system (with +/- intensity adjustment)
• anti-slip interior on the bottom of the bathtub
• drain and overflow system (automatic type, with a knob and a plug closing the drain), adapted to a standard G 1 1/2 '' siphon
• bath siphon included (end of the siphon pipe Ø50 mm), full protection against odors from the sewage system

Material

• bathtub body made of the highest quality Lucite® sanitary acrylic, snow-white color, antibacterial coating
• ASD flat pipe system (prevents the formation of deposits in the tub piping)
• increased stiffness and strength (from the outside the bathtub is laminated with a mixture of fiber and resin)
• surface resistant to UV radiation and tarnishing
• acrylic surface ensures easy cleaning and maintenance
• bathtub mounted on a metal frame with adjustable feet
• all water and air jets colour chrome gloss
• knob for overflow and drainage system and drain plug in gloss chrome

Electrical parameters

• AC 230V / 50Hz power supply
• minimum cross-section of the power cord: 3x2.5 mm2 Cu
• voltage in the internal circuit: 12V
• protection class provided by the housing: IPX55
• shock protection class: I
• rated power: ≦ 1600W

Warranty, Service

• warranty for the acrylic coating and elements of the hydro massage system - 3 years
• type of warranty - in home (all warranty repairs are performed by the service at the customer's premises)
• manual in Polish
• the possibility of installing the purchased bathtub by an authorized service center throughout the country (23 service points)

Product dimensions

• length - 1400 mm
• width - 1400 mm
• height - 610 mm
• depth - 425 mm
• capacity - 215 l
• other dimensions - according to the attached technical drawing

Technical drawings of the bathtub

Assembly and user manual guide
