Steam shower 100x100 cm SGM-DC309

Product Code:  SGM-DC309
Availability:  Discontinued
Dimensions:  100 x 100 x 220 cm (L x W x H)

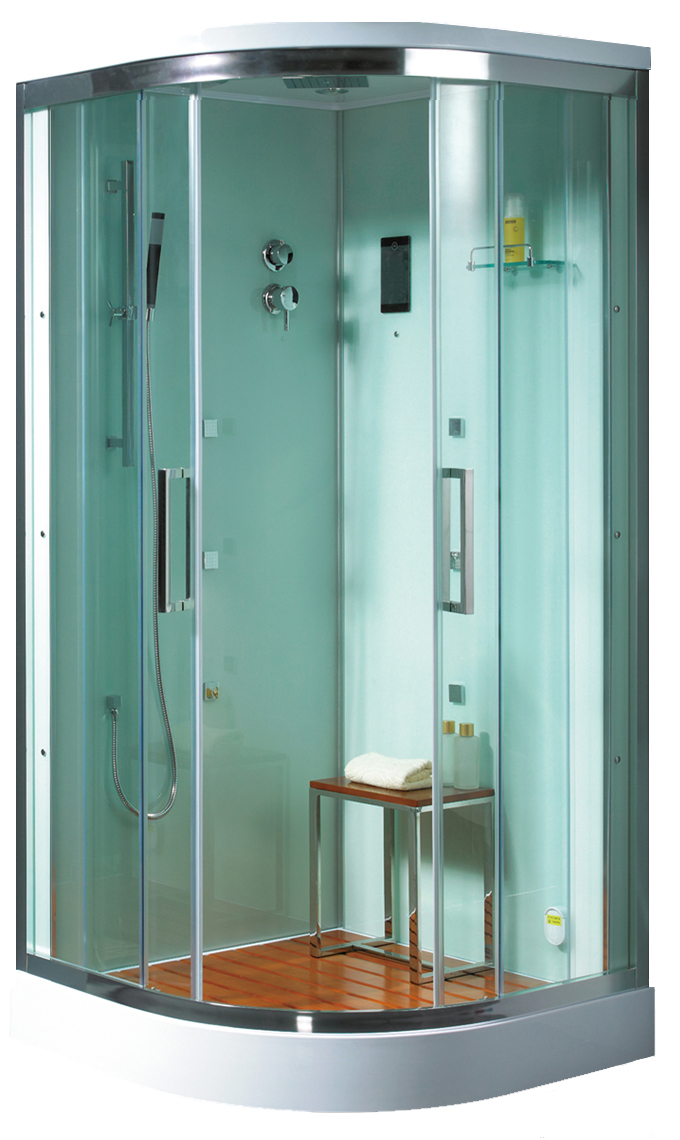

Steam shower 100x100 cm SGM-DC309

Shower cubicle with built-in steam generator. Hydromassage cabin. The highest quality product that has been popular for many years. Beautiful and reliable. All Super-Line cabins have been designed from the ground up to enjoy every client.

Technical parameters

Utility functions:

  • modern electronic LCD touch control panel (completely hidden in a glass shell). The control panel is not in contact with water!
  • upper interior lighting in the cabin roof
  • shelf for cosmetics and bath lotions
  • CD ('chinch' type connector) and landline connection
  • FM radio, search and store radio stations
  • built-in internal speaker
  • built-in fan and odor vent in the cabin roof
  • chrome steel spray mode switch
  • wooden interior seat
  • ozone disinfection
  • wooden bathing platform in the paddling pool
  • outdoor temperature sensor
  • alarm
  • aromatherapy (while using the sauna)

Shower and hydromassage system:

  • 6 adjustable back hydromassage jets in the panel
  • top shower (multi-point head shower)
  • hand shower

Sauna:

  • power of the steam generator used: 3kW.
  • sauna temperature range: 20-60 degrees Celsius
  • steam generator runtime adjustment

Technical data

Dimensions [LxWxH]: 1000x1000x2200 mm, shower tray height 150 mm (external dimension), internal height in the cabin - 1970mm (1940mm with a wooden frame). Gross weight of the set: 175 kg.

Material: 6mm toughened glass, shatterproof, front windows and sliding doors - transparent glass. Top-quality aluminum profiles (100% pure aluminum, high gloss), shower tray (white color) made of high-class sanitary acrylic (note - it is not ABS , used in cheap cabins), with horizontal adjustment. Central shower panel made of tempered glass (opal glass). Permanent magnetic aluminum seals and adjustable steel rollers were used to close the cabin door. Armature made of chromed steel. Seat, platform, paddling pool - made entirely of impregnated and varnished oak wood (hazelnut shade).

Product electrical parameters:

  • external power: 220-240V (50-60Hz)
  • internal voltage in the control circuit: 12V
  • lighting rated voltage: 12V (10W)
  • overvoltage protection (built-in differential switch)
  • Electric shock protection class: 1
  • steam generator rated power: 3000W

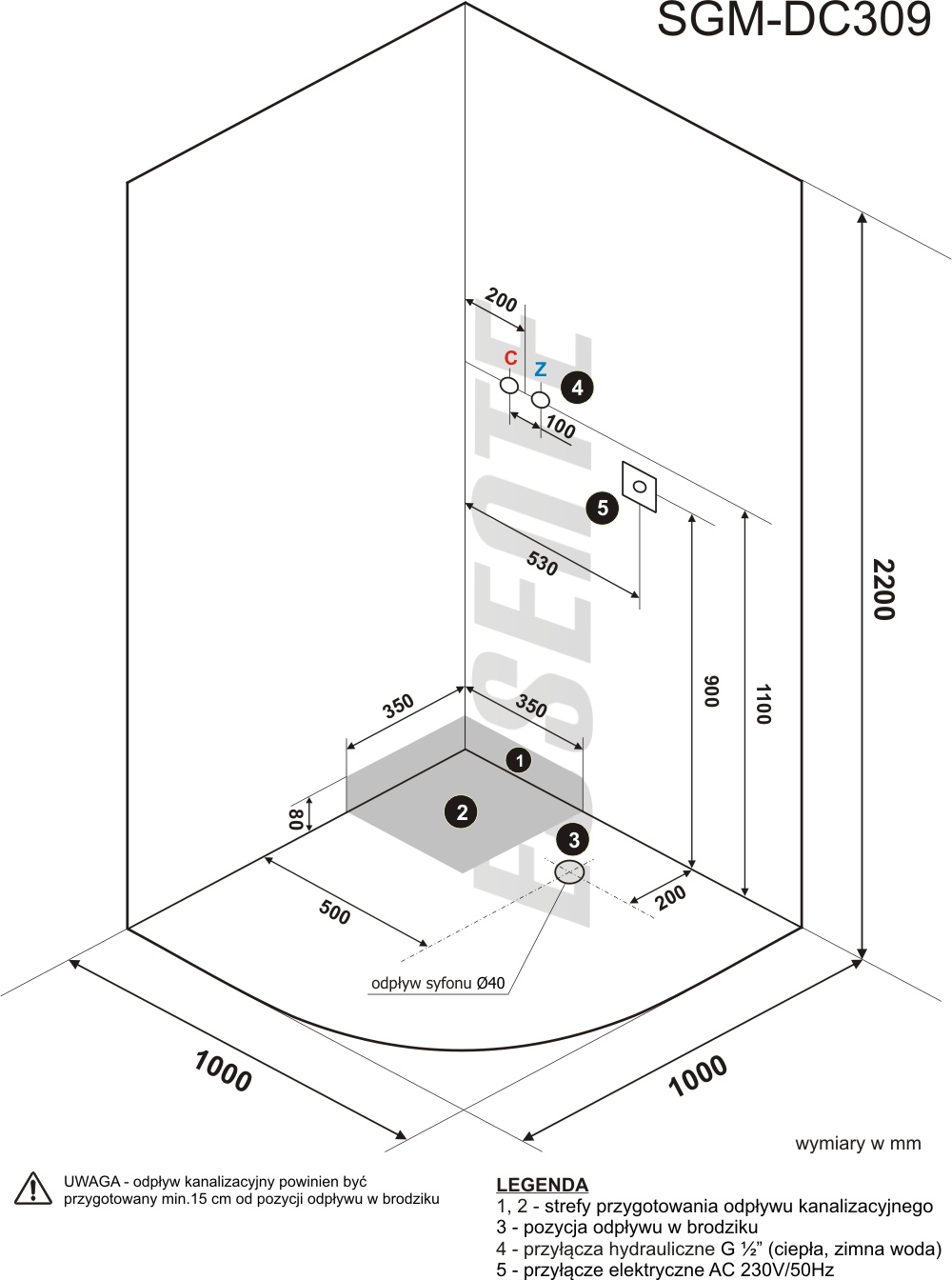

Connection diagram

Rysunek techniczny SGM-DC309
