Steam shower 90x90 cm SGM-DC506

Product Code:  SGM-DC506
Availability:  Discontinued
Dimensions:  90 x 90 x 215 cm (L x W x H)

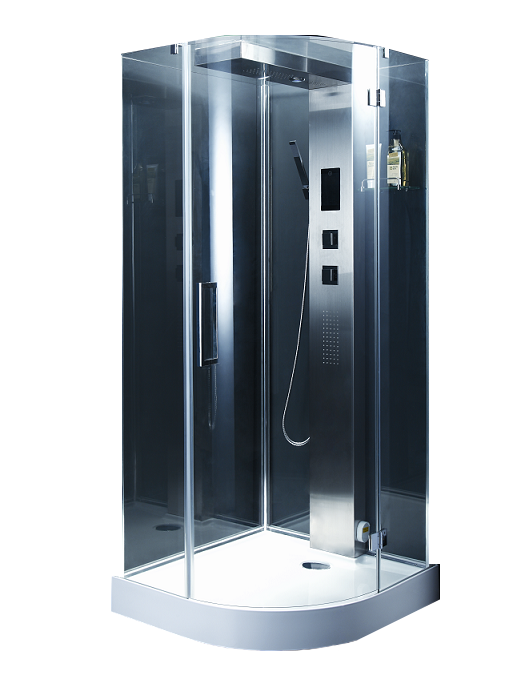

Steam shower 90x90 cm SGM-DC506

Shower cubicle with built-in steam generator. Hydromassage cabin. The highest quality product that has been popular for many years. Beautiful and reliable. All Super-Line cabins have been designed from the ground up to enjoy every client.

Technical parameters

Utilities:

  • modern electronic touch control panel LCD (fully hidden in a glass coating). The control panel has no contact with water!
  • upper interior lighting in a steel rain shower
  • shelf for cosmetics and bath lotions
  • connection of CD (chinch type connector) and landline telephone
  • FM radio, search and save radio stations
  • built-in internal speaker
  • built-in fan and odor vent in the roof of the cabin
  • steel chrome spray mode switch
  • freestanding indoor seat
  • ozone disinfection

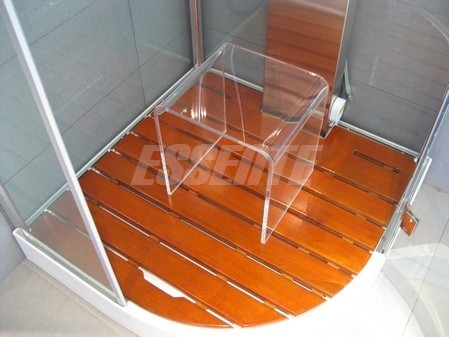

  • bathing platform in the shower tray, made of oak wood
  • outdoor temperature sensor
  • alarm
  • aromatherapy (when using the sauna)

Shower and hydromassage system:

  • 2 large adjustable back hydromassage jets in the panel
  • 65 microdoses (so-called acupuncture nozzles) in the spray panel
  • top shower (rain shower with microduct system)
  • all nozzles have an anticalc system (prevents limescale)
  • shower head

Sauna:

  • power of the steam generator used: 3kW.
  • sauna temperature range: 20-60 degrees Celsius
  • steam generator work time regulation

Technical data

Dimensions [LxWxH]: 900x900x2150 mm,shower tray 138 mm (external dimension), internal height in the cabin - 1970 mm (1935 mm with wooden frame). Gross set weight: 156 kg.

Material: tempered glass, 6mm thick, shatterproof, all glass elements (doors, front glass, side windows, roof) - transparent glass. Top-quality aluminum profiles (100% pure aluminum), shower tray (white) made of high quality sanitary acrylic (note - this is not ABS, used in low-cost cabins), with horizontal adjustment. Central shower panel made of chrome-nickel stainless steel # 304 (silver shade, brushed steel). Permanent magnetic aluminum seals and adjustable steel hinges were used to close the cabin door. Armature made of chromed steel. Shower tray platform - made entirely of oak, impregnated and varnished (hazelnut shade). Seat - 100% transparent acrylic.

Product electrical parameters:

  • external power supply: 220-240V (50-60Hz)
  • internal voltage in the control circuit: 12V
  • rated lighting voltage: 12V (10W)
  • overvoltage protection (built-in differential switch)
  • shock protection class: 1
  • steam generator rated power: 3000W

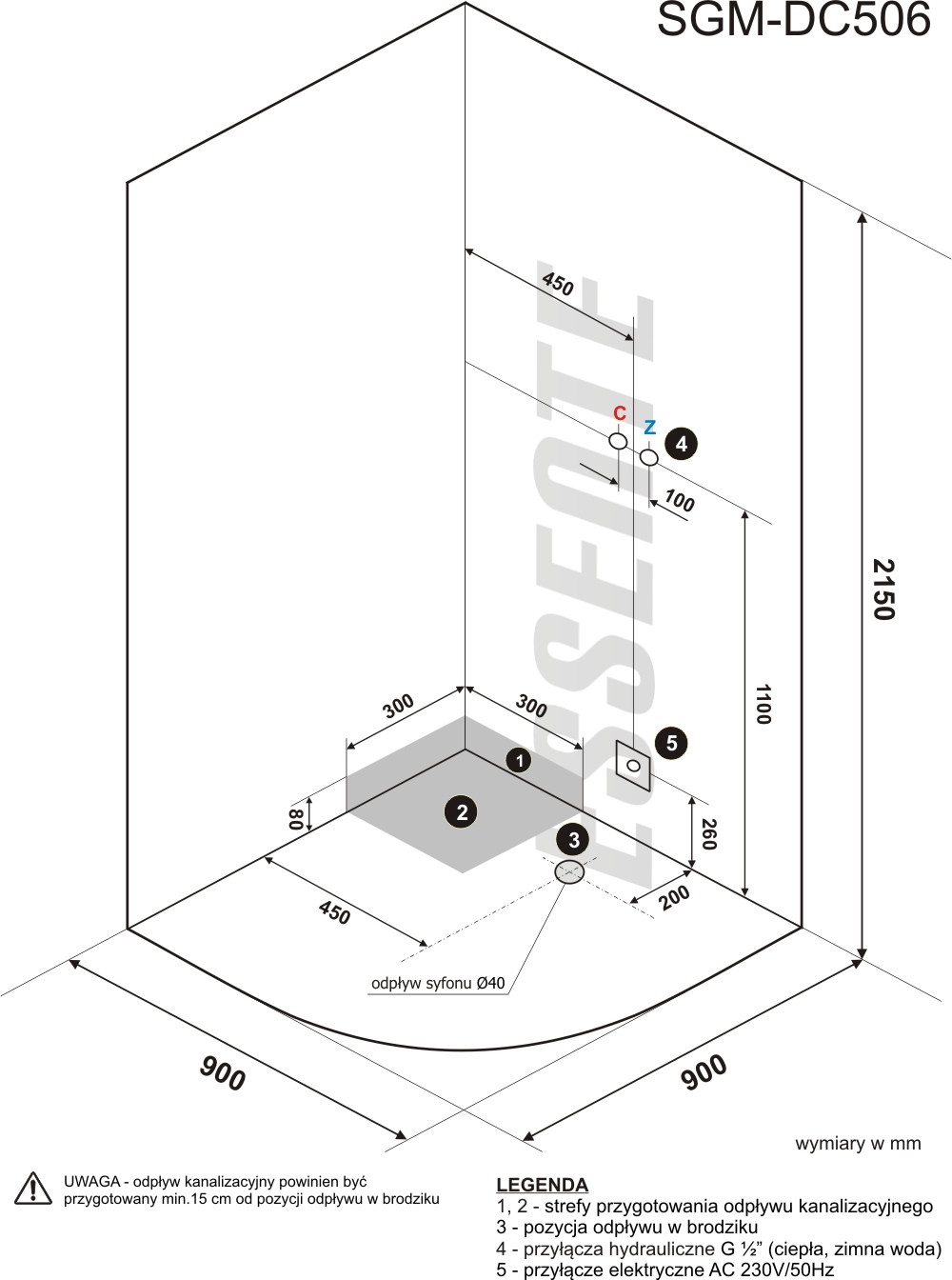

Connection diagram

Rysunek Techniczny SGM-DC506
