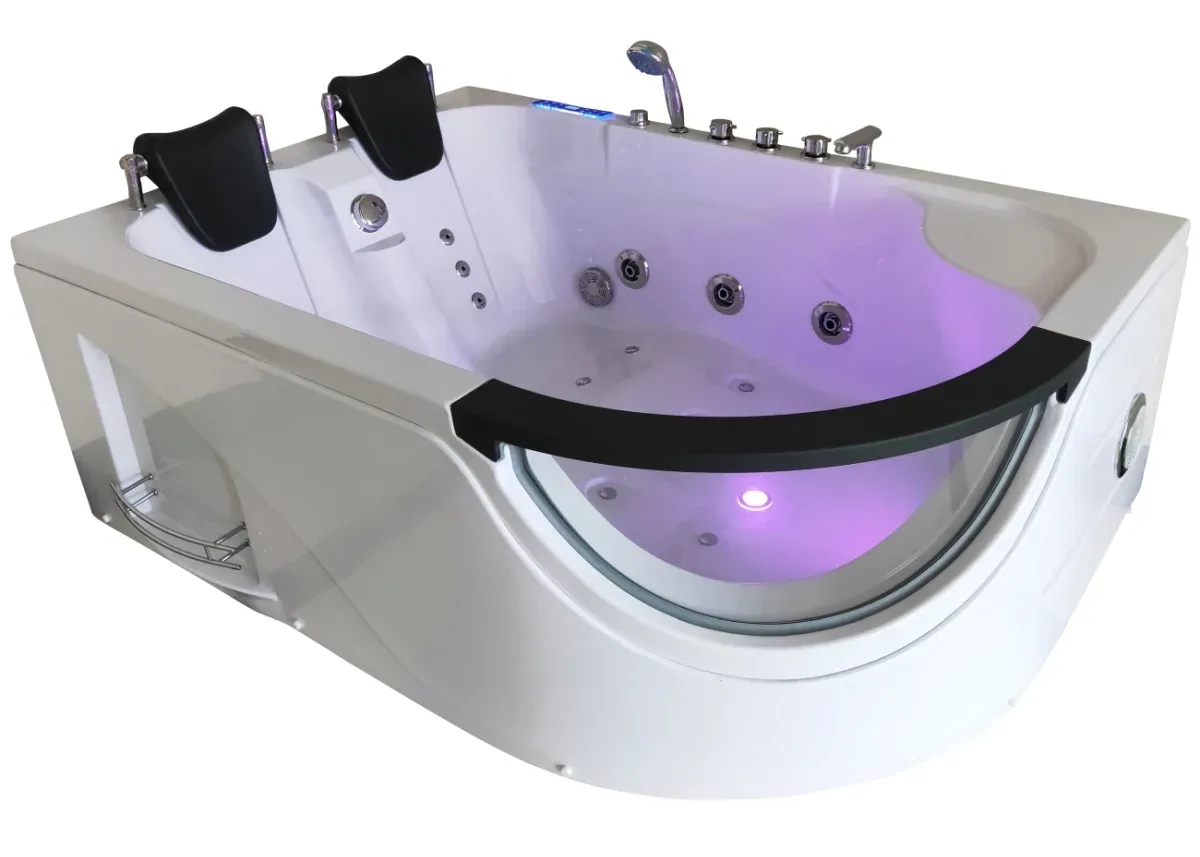

Asymmetric corner double person jacuzzi tub Castylia SGM-KL9209R 170x118 cm - left

PRODUCT DIMENSIONS

• • length - 1700 mm
  • width - 1180 mm
  • height - 650 mm
  • capacity - 250 l
  • outlet of hydraulic and electric connections - in accordance with the attached technical drawing

MATERIAL PERFORMANCE

• • • high-class ABS / PMMA sanitary acrylic, surface resistant to scratches and damage (white color, shade of porcelain white, thickness at the bottom 8 mm (cheap bathtubs are up to 4 mm)
    • bath mixer (C / Z water valves, shower switch, spout) made of brass, chrome plated, stainless steel. Ceramic valves, plastic shower head, chrome plated
    • bathtub structure mounted on a metal frame with leveling adjustment ± 2 cm
    • bathtub front panel (white, removable) and PMMA front glass

DESCRIPTION OF HYDROMASSAGE SYSTEM AND UTILITY FUNCTIONS

• • • • automatic rinsing (cleaning) function of the hydromassage system after bathing (after bathing for about 3 minutes, the rinsing system is activated, clean water is taken from the water system, which rinses sediments from the massage system)
      • water heater (flow type) - power 1500 W, setting the heating temperature from the control panel
      • temperature sensor
      • water hydromassage: 6 large side water jets (adjustable), 6 point jets for the back, water pump 1.5 Hp (electric power 1100 W)
      • hydromassage aeration system (while the hydro massage is in operation, opening the regulator causes an admixture of air to flow in, which increases the power of the hydro massage)
      • water level sensor (water pump dry running lock)
      • water pump return suction
      • air massage (12 air massage nozzles in the bottom of the bathtub), very quiet air blower, working volume only 50 decibels
      • modern electronic control panel with LED backlight (functions control: massage, radio, bluetooth, lighting, ozonator, heater, etc.)
      • water ozonation (built-in ozonator, switching on from the control panel)
      • FM radio, search and store radio stations
      • connecting an external audio source via Bluetooth
      • built-in external speaker (on the bathtub casing)
      • underwater lighting, chromotherapy, 7-color light
      • 2 comfortable headrests placed on the tub body
      • anti-slip interior on the bottom of the bathtub
      • drain and overflow system (automatic type, with a knob and a plug closing the drain), adapted to a standard G 1 1/2 '' siphon
      • multifunctional shower head
      • protection against water overflow
      • shelf for cosmetics mounted on the outer casing

ELECTRICAL PARAMETERS

• • • • AC 230V / 50Hz power supply
      • minimum cross-section of the power cord: 3x2.5 mm2 Cu
      • voltage in the internal circuit: 12V
      • protection class provided by the housing: IPX55
      • shock protection class: I
      • rated power ≦ 3000 W (value refers to the maximum rated power of all installed electrical components)
